C0 · Homestead, Florida
Homestead
A Homestead field record centered on base review, preparation and installation control while the work remains in progress.
Start a ProjectC1
Base review
The base condition, the preparation sequence and the alignment controls all had to stay visible inside an unfinished worksite record.
This is a commercial corridor, and a corridor is the least forgiving place to install a floor. It is long, it is walked in a straight line, and it is lit from one end, which means any deviation in the plane announces itself down the whole run.
- Base, preparation and control documented
- Leveling controls in place during the work
- 6 documentary views
C2 · Documented project archive
Preparation and control
The base gets reviewed before it gets covered, and the review is what the marks in these frames are.
A prepared base is checked for the two things that matter: whether the plane is continuous and whether it is dry enough to build on. Both get resolved while the surface is still open, because both become expensive the moment something is laid over them.
Then the protective layer goes across the prepared base. In a commercial building the floor is rarely the last trade to leave, so the surface has to survive whatever is still working around it.
The leveling clips visible in the installation frames are the third control. A clip holds two adjacent pieces at the same height while the joint sets, which is how you keep a lipped edge from forming between planks. In a residential room a small height difference between two pieces is a cosmetic complaint. In a corridor with cart traffic it is a wear point, and it fails at the edge first.
Preparation

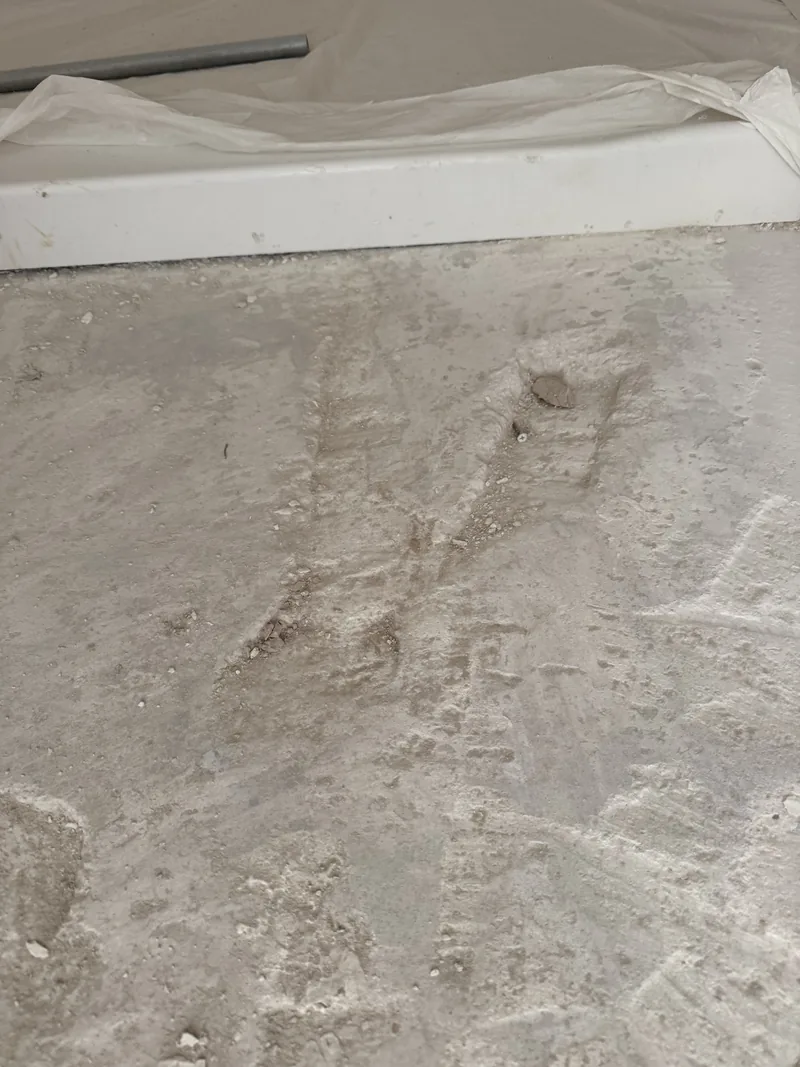

A protective layer is documented across the prepared base. In an occupied or active building this layer is what buys the floor time between installation and handover.
Installation control

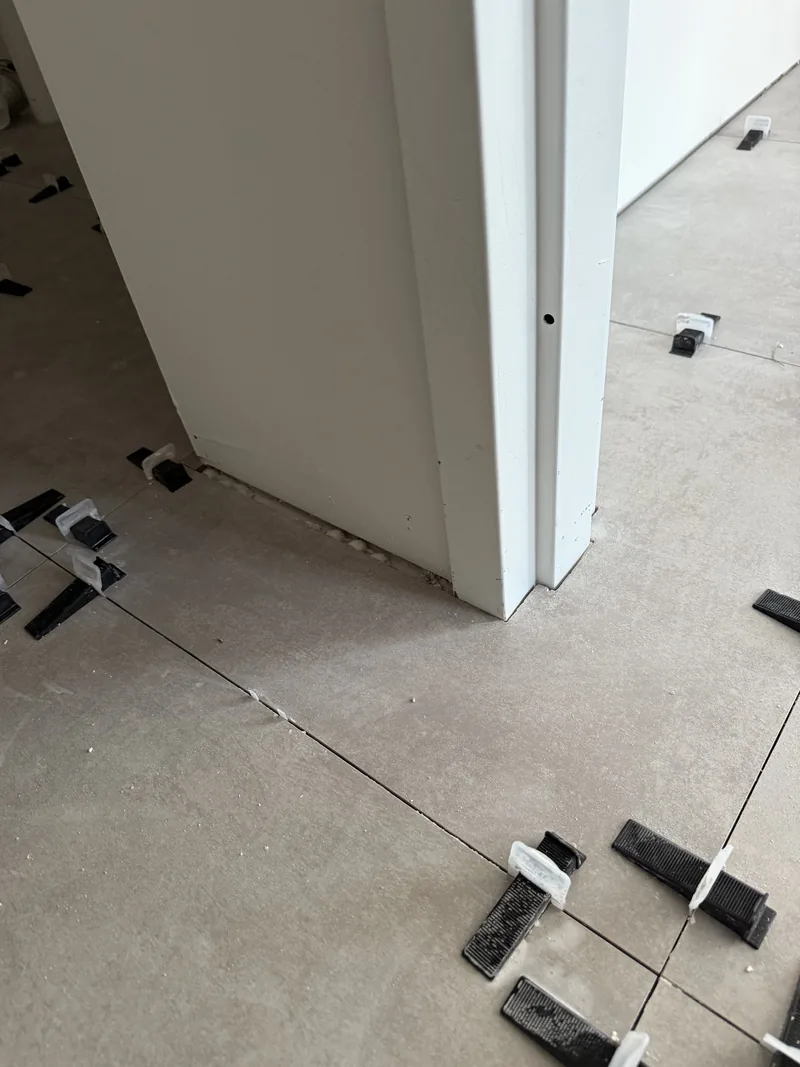

Leveling clips show alignment control while the surface advances. They hold neighbouring pieces at a common height until the joint sets, so no lipped edge is left behind the crew.
C4
Precision at the edge
The photographs follow base review, surface protection and leveling control: the part of the job that decides everything installed on top of it.
The choice being made in these frames is where to spend the hours. Controls at the doorway and along the run add time while the crew is on site. Skipping them moves that time to a callback, where the same correction costs the floor as well as the labour.
C6
Latest documented state

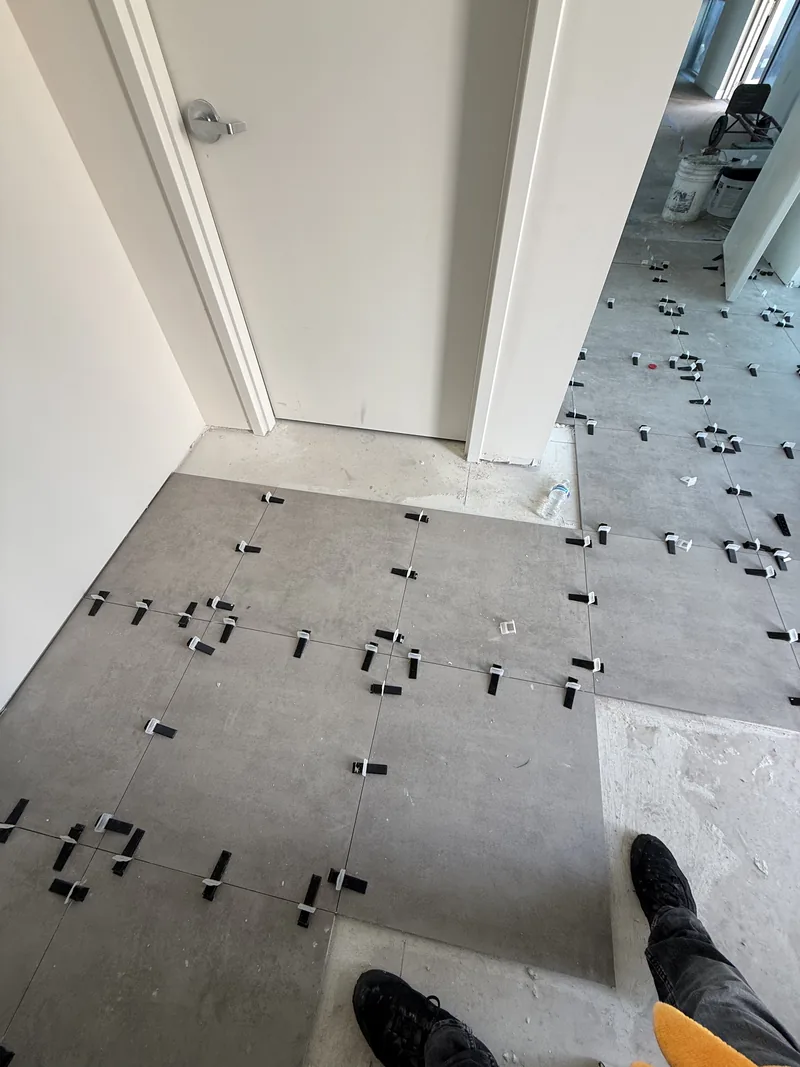

The latest documented state remains an installation in progress, with leveling controls, tools and active work visible across the surface.
C7
The process is the proof
Precision in process is a strange thing to photograph, because when it works there is nothing to see.
What these frames hold is the control itself: the marks on the base, the clips on the joints, the layer over the prepared surface. That is the work a finished corridor never shows.
